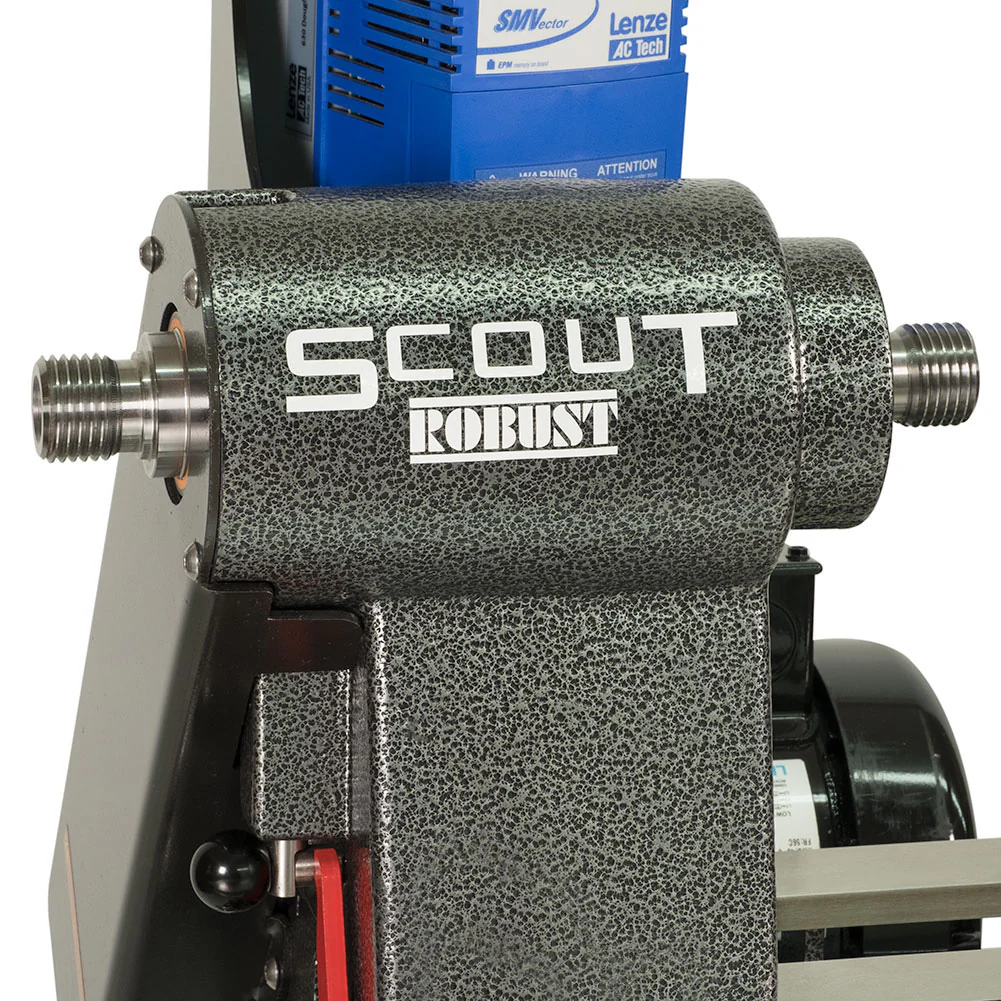

Robust SCOUT 14 Inch Bench Lathe
The Robust Scout Wood Lathe offers the same quality, workmanship and reliability that Robust is known for in a package costing thousands less than their larger models. With a capacity of 14" over the bed and 26" between centers, the Scout is more than capable of handling most any project large or small. And with a full range of optional accessories including a 16" bed extension, 1.5 h.p. motor upgrade, casters, vacuum adapter and more, you can truly customize your Scout to fit your needs. Designed for mounting directly to a bench top or on the fully adjustable Robust Universal Lathe Stand, the Scout is Robust’s "big-little" lathe that gives you the features and performance you want with a price tag you’ll love. Made in the USA.
- Single pulley design for great torque and range
- Stainless steel bed ways on rigid pyramid box beam
- Easy to read digital RPM readout

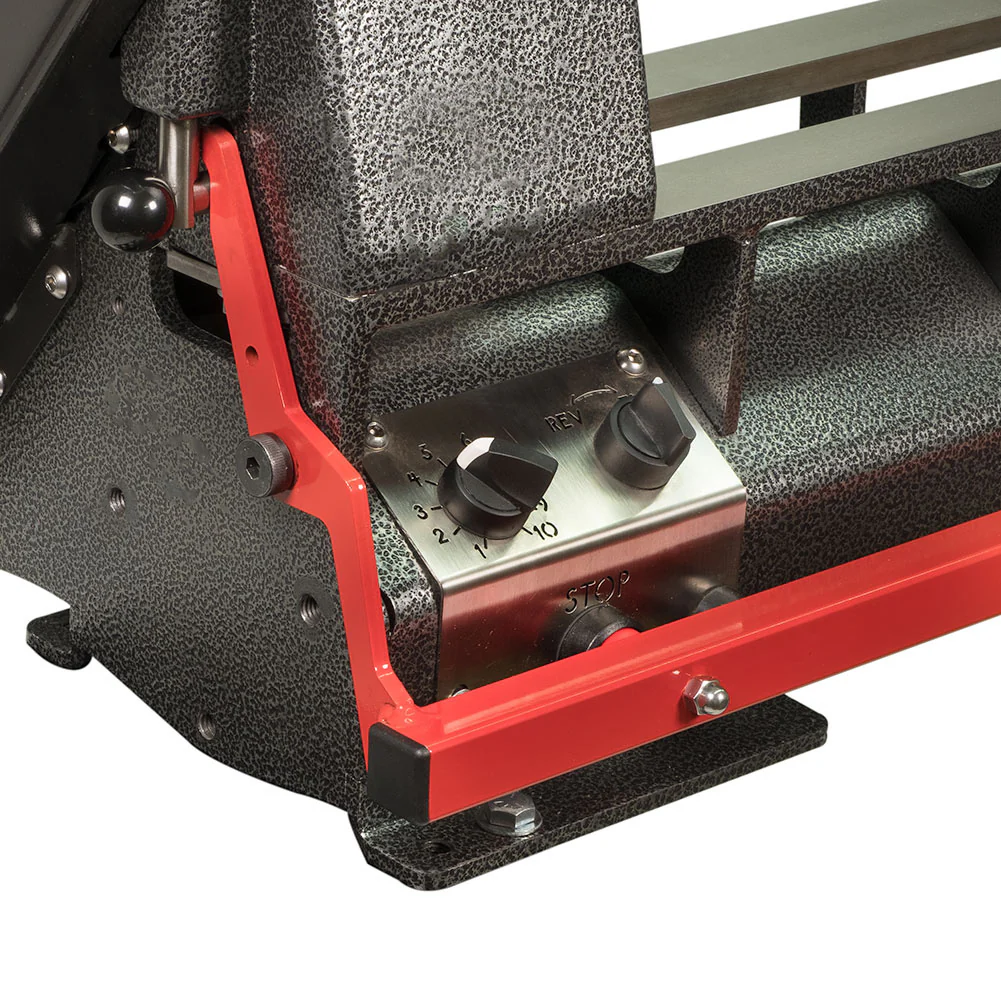

- Stop bar runs length of bed
- 20" outboard capacity with optional extension
- 24-position indexing
- 1 HP USA made Leeson variable speed motor

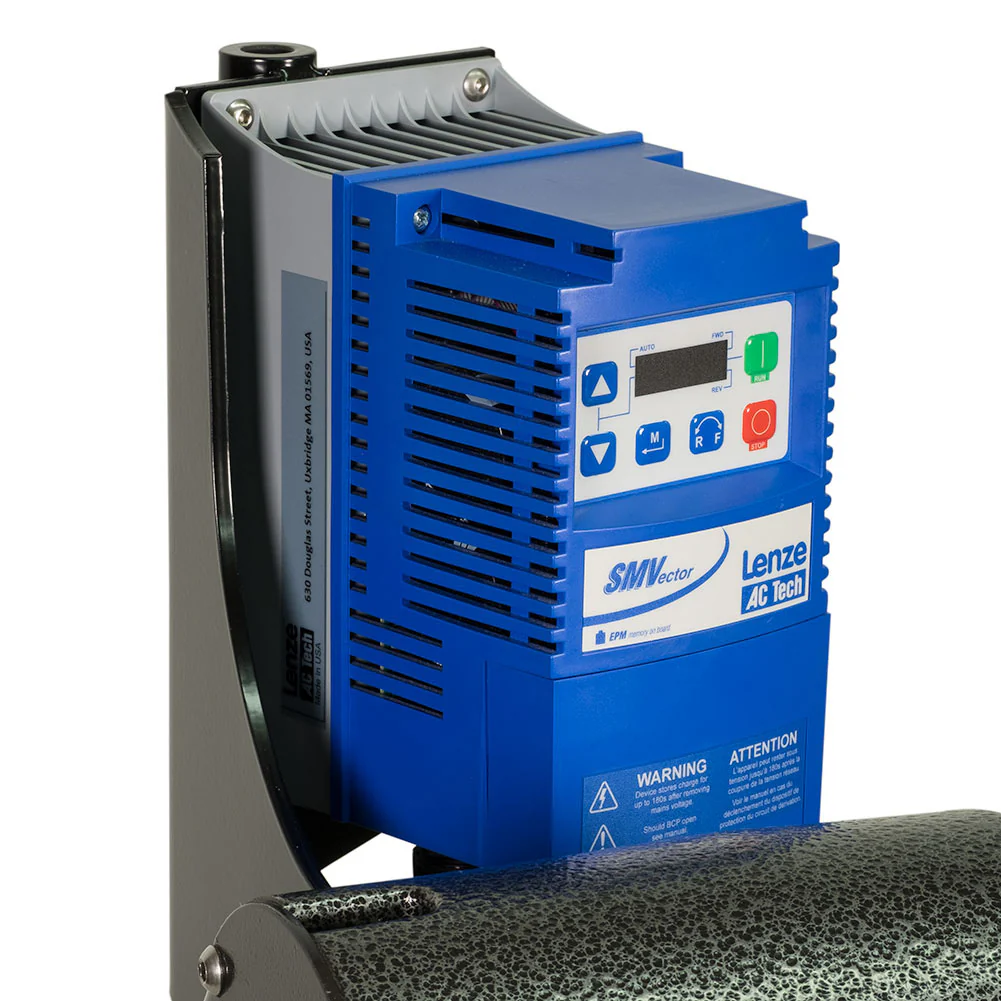

- USA made inverter for variable speed, forward and reverse
- Spindle lock also disconnects controls
- Positive spindle lock for one-handed operation
- Full range of accessories to choose from
- Seven year "head to tail" warranty includes everything, even the spindle bearings
Specifications:
Swing over bed: 14"
Swing with optional outboard bed: 20"
Distance between centers: 26" (42" with optional bed extension)

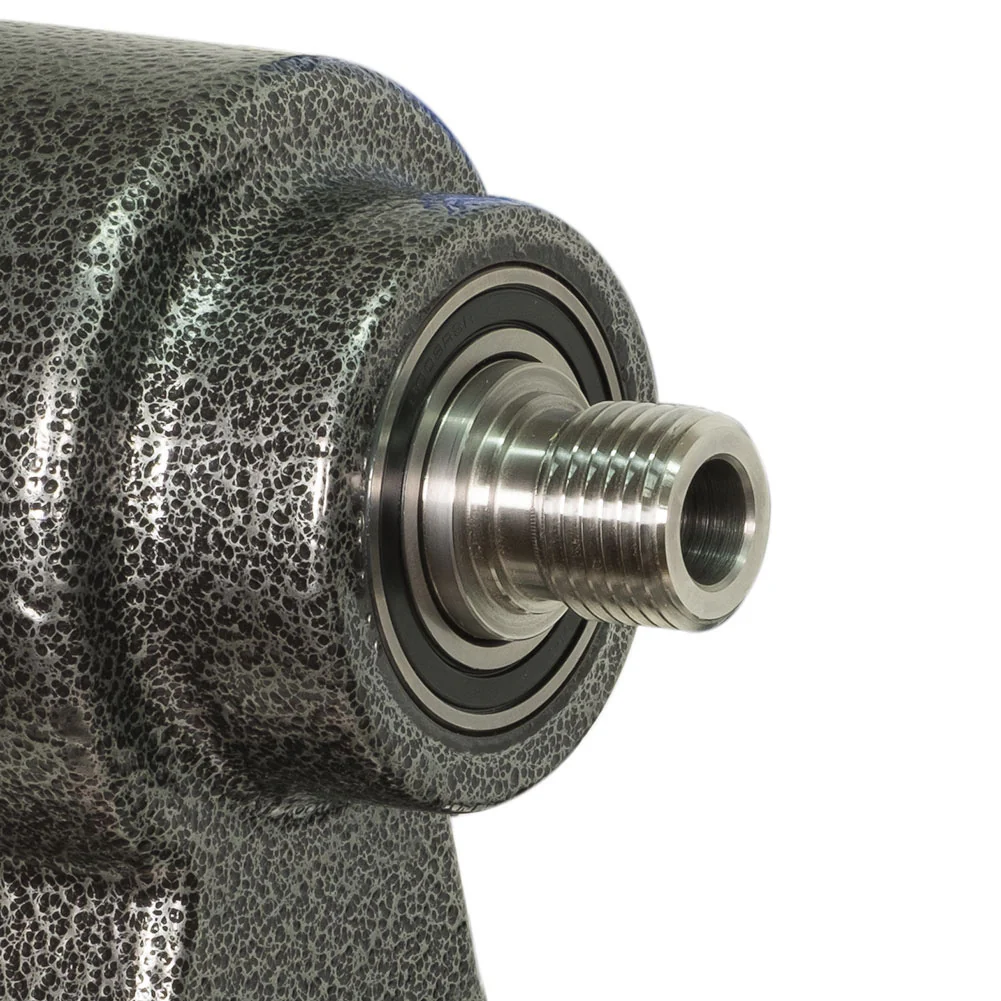

Spindle thread: 1-1/4" x 8 TPI
Spindle through hole: 3/8" diameter
Morse tapers: 2MT
Indexing: 24 position

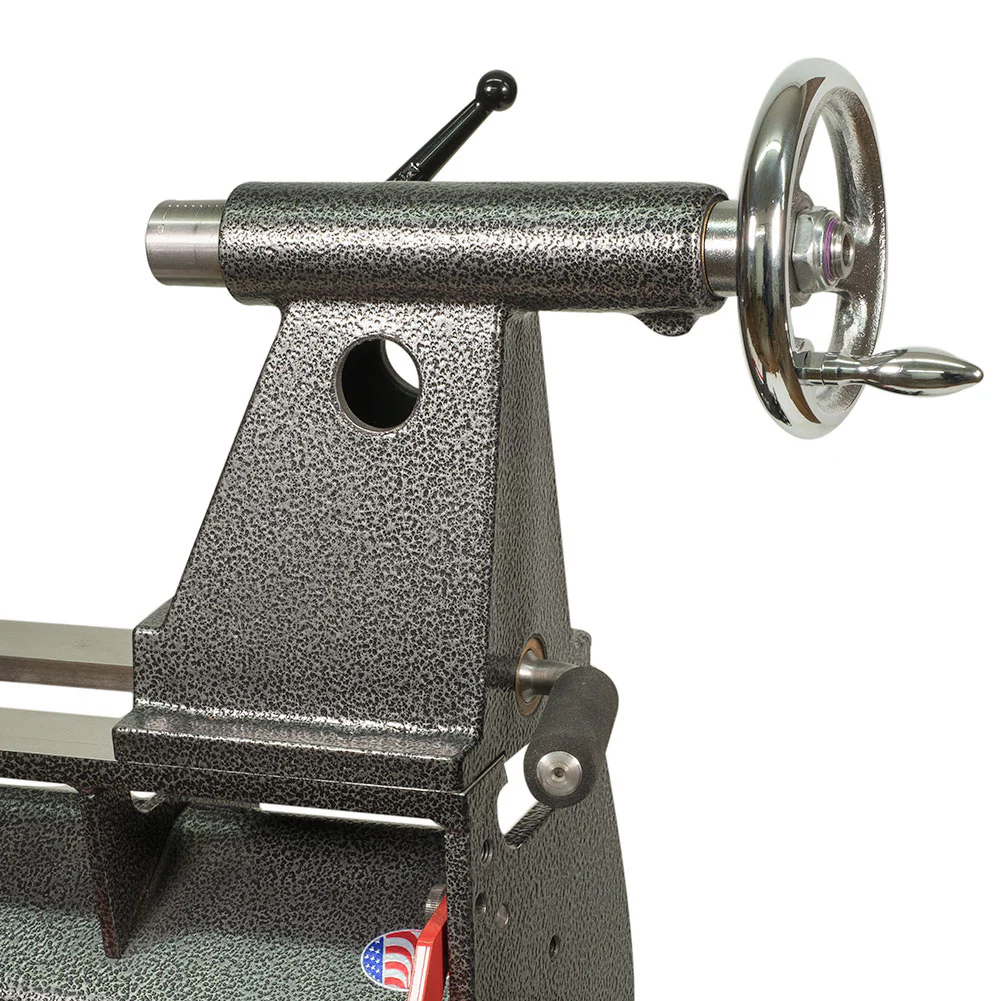

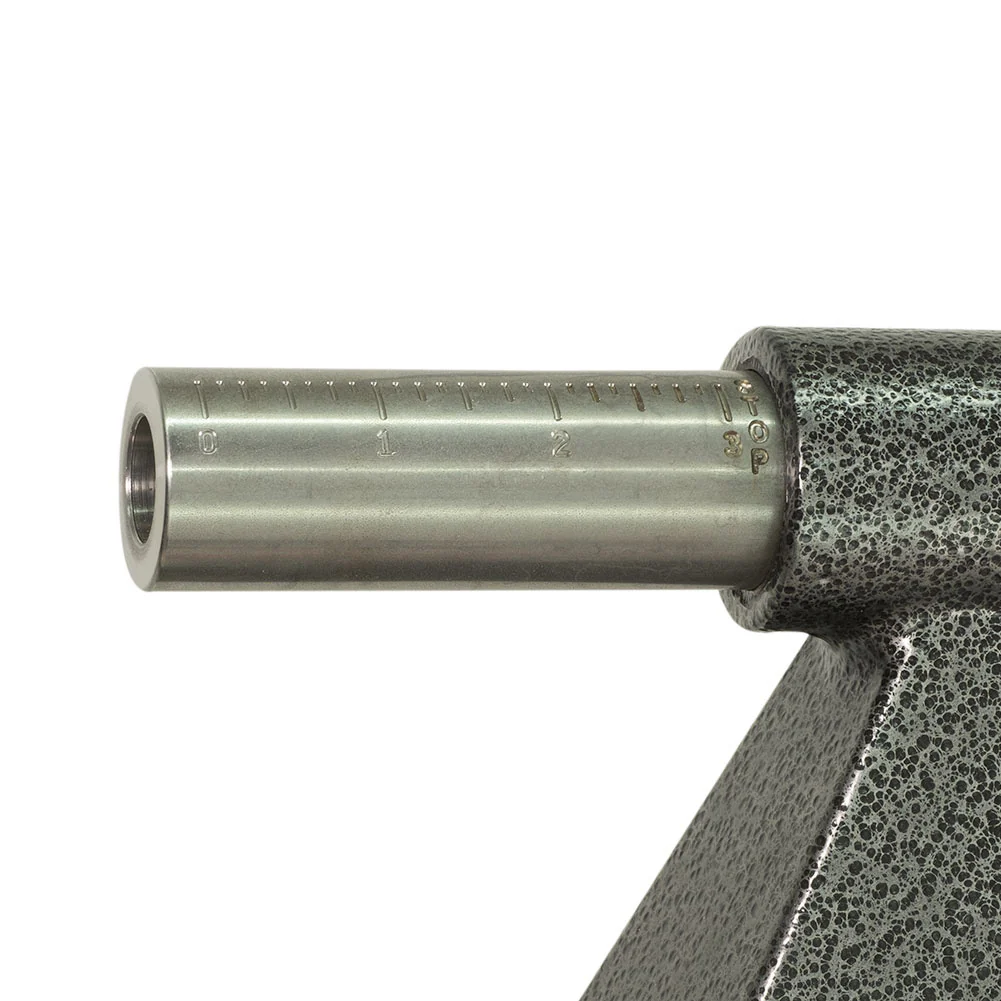

Tailstock quill travel: 3"
Motor: 1 HP (1.5 HP optional)
Voltage: 110v or 220v single phase
Net weight: 150 lbs
Includes:
Cup style drive center
Revolving center
12" tool rest
Knock-out rod
Operators manual
Special Notes:
- Call for our best price on a Robust lathe! Additional shipping charges apply. Call 1-800-551-8876 for a shipping quote.
