Raptor Grinding Jig Guide

Achieving the perfect bevel angle on your turning tools depends on one critical factor: consistency. Even if your sharpening jig is set correctly, your results will vary if your tool sits deeper or shallower in the holder each time you sharpen.

The Raptor® Grinding Jig Guide eliminates the guesswork by providing a physical stop to set the exact protrusion depth of your tool in the holder. Whether you are establishing a primary cutting edge, a 40/40 grind, or a secondary clearance bevel, these guides ensure your setup is identical every time you return to the grinder.

Why You Need the Raptor® Grinding Jig Guide:

• Essential Depth Setting: The Raptor® Grinding Jig Guide ensures that the tool is set to the correct depth in the tool holder before you begin the sharpening process.

• Eliminate “Eyeballing”: Stop using rulers or marks on your workbench; these guides provide a repeatable physical reference for professional-grade results.

• Extend Tool Life: By ensuring the tool is positioned identically every time, you remove the minimum amount of metal required to refresh the edge, making your expensive gouges last longer.

• Secondary Bevel Capability: Easily create a secondary (clearance) bevel to prevent heel-rubbing and scoring marks on your workpieces.

• Built for Shops: Laser-cut from 1/8” solid steel and powder-coated for a lifetime of use in demanding woodturning environments.

Choosing the Correct Size:

• 1-3/4" Guide: The standard protrusion setting for turners using 6” diameter grinding wheels.

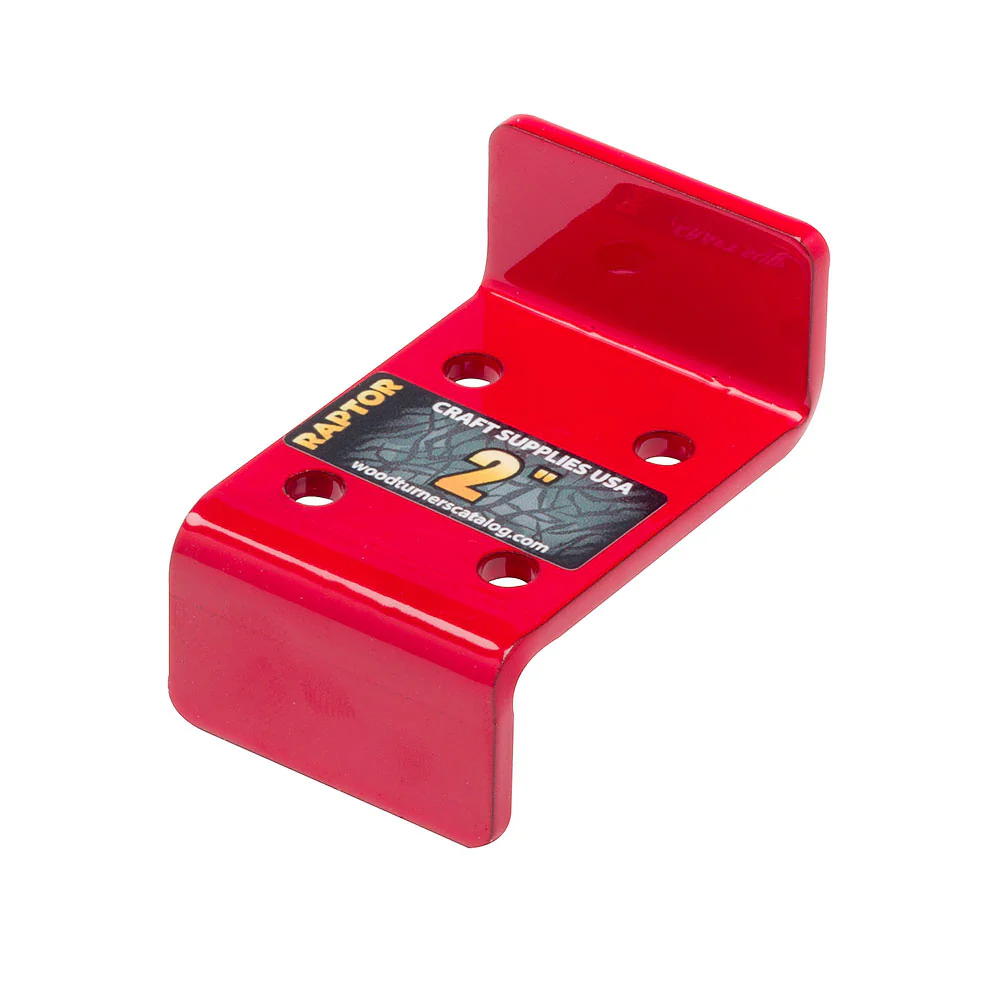

• 2" Guide: The standard protrusion setting for turners using 8” diameter grinding wheels.

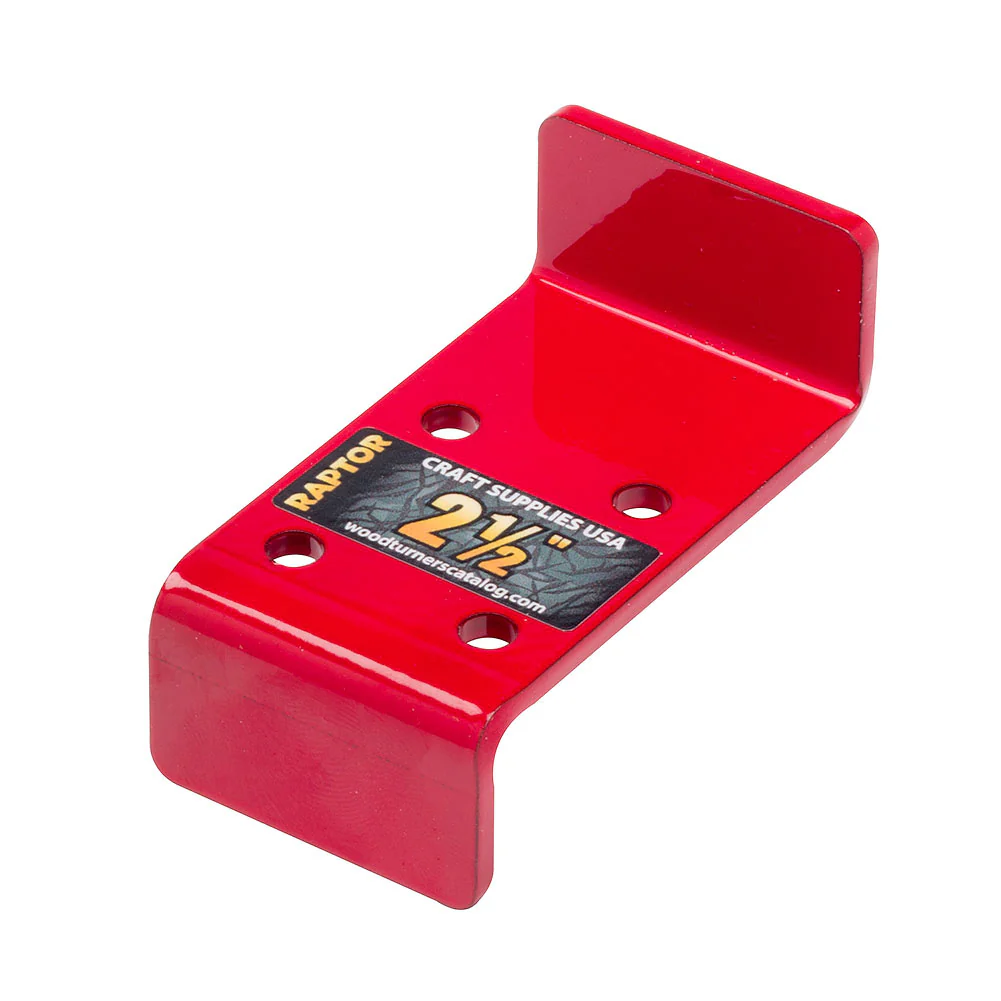

• 2-1/2" Guide: Used on 8” wheels to set the protrusion for grinding a secondary (clearance) bevel. First, sharpen the primary edge using the 2” guide, then switch to the 2-1/2” guide to grind the clearance bevel.

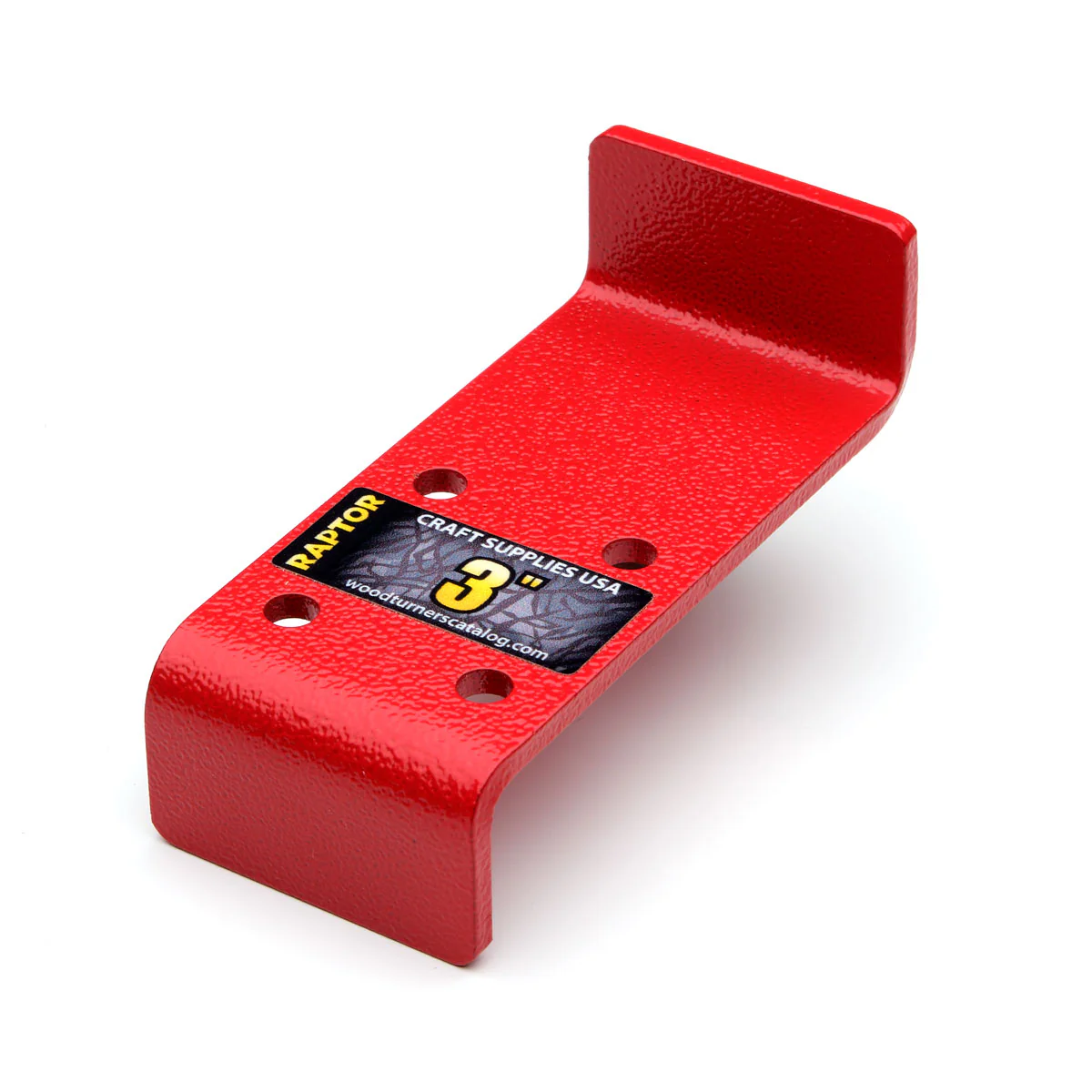

• 3" Guide: Specifically designed for the 40/40 grind setup on 8” grinding wheels to achieve the required geometry.

Specifications:

• Construction: 1/8” solid steel.

• Finish: durable powder coating.

• Design: symmetrical for easy mounting and use on either side of the grinder.

• Origin: proudly made in the USA.

• Compatibility: works with Easy Grind™, Oneway® Vari-Grind™, Woodcut™ Tru-Grind, and most other major sharpening systems.

Simplify your sharpening workflow and get back to the lathe faster with Raptor® Grinding Jig Guides. Instructions are linked below.
