Powermatic 3520C Lathe

The Powermatic 3520C wood lathe builds upon the venerable 3520B with modern styling and exciting new features. The 3520C features a moveable control box, redesigned spindle lock, digital spindle indexing readout, adjustable riser blocks for 6" of height adjustment, and more. Cast iron construction, attention to detail, and user friendly design make Powermatic lathes an excellent value for turners of all skill levels. Backed by Powermatic's 5 year warranty and service centers throughout the USA.

Features

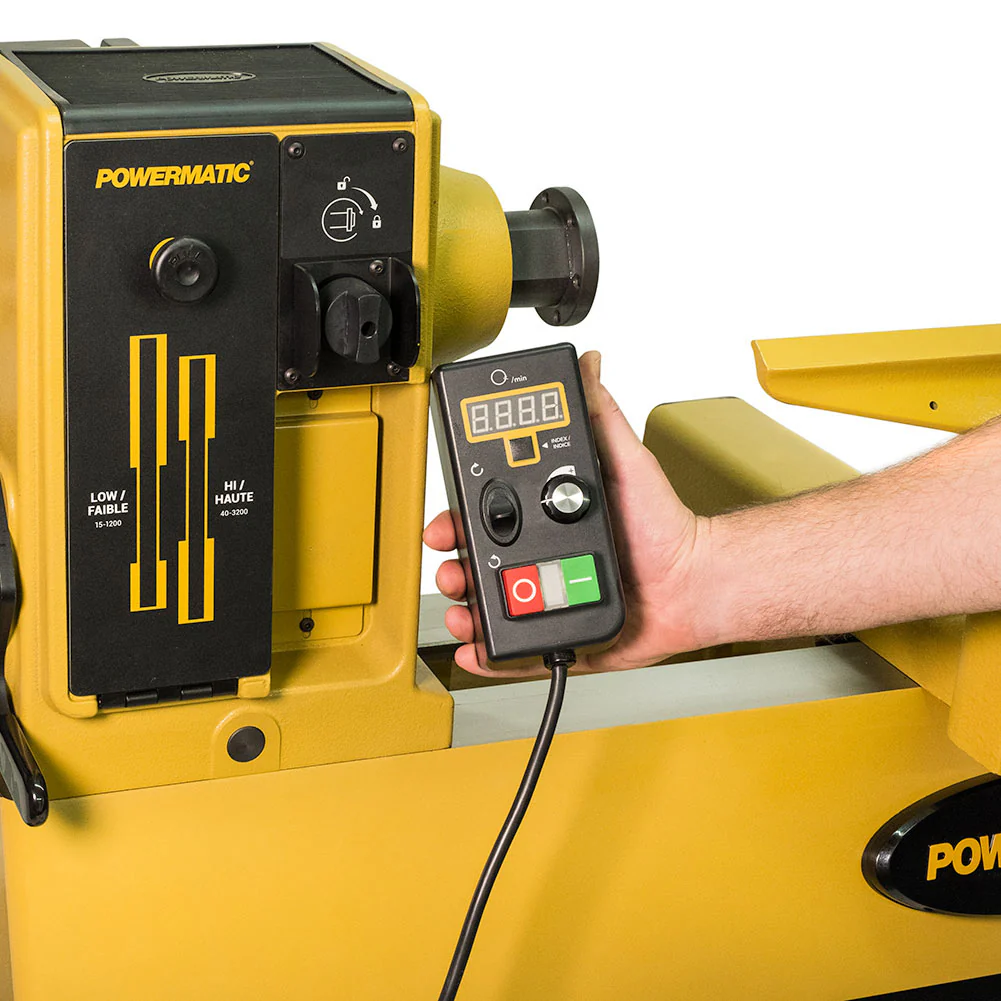

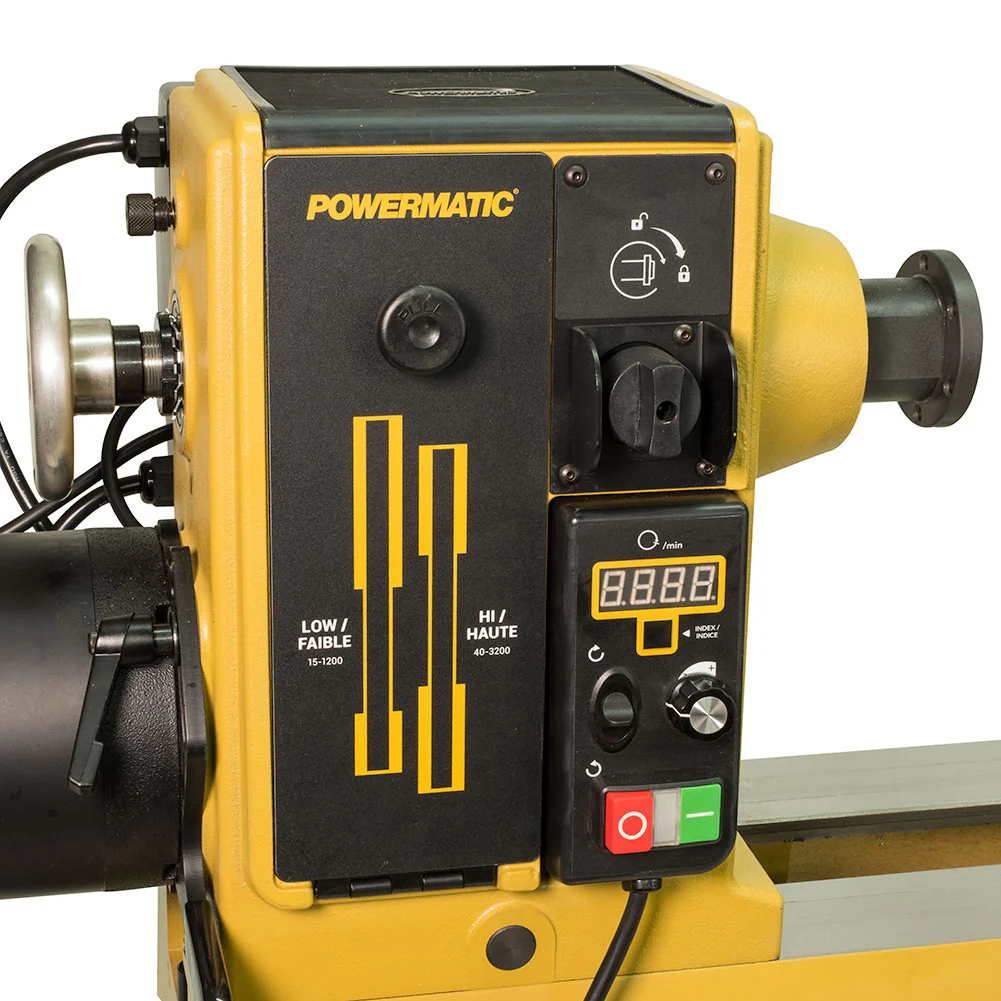

• Moveable control box

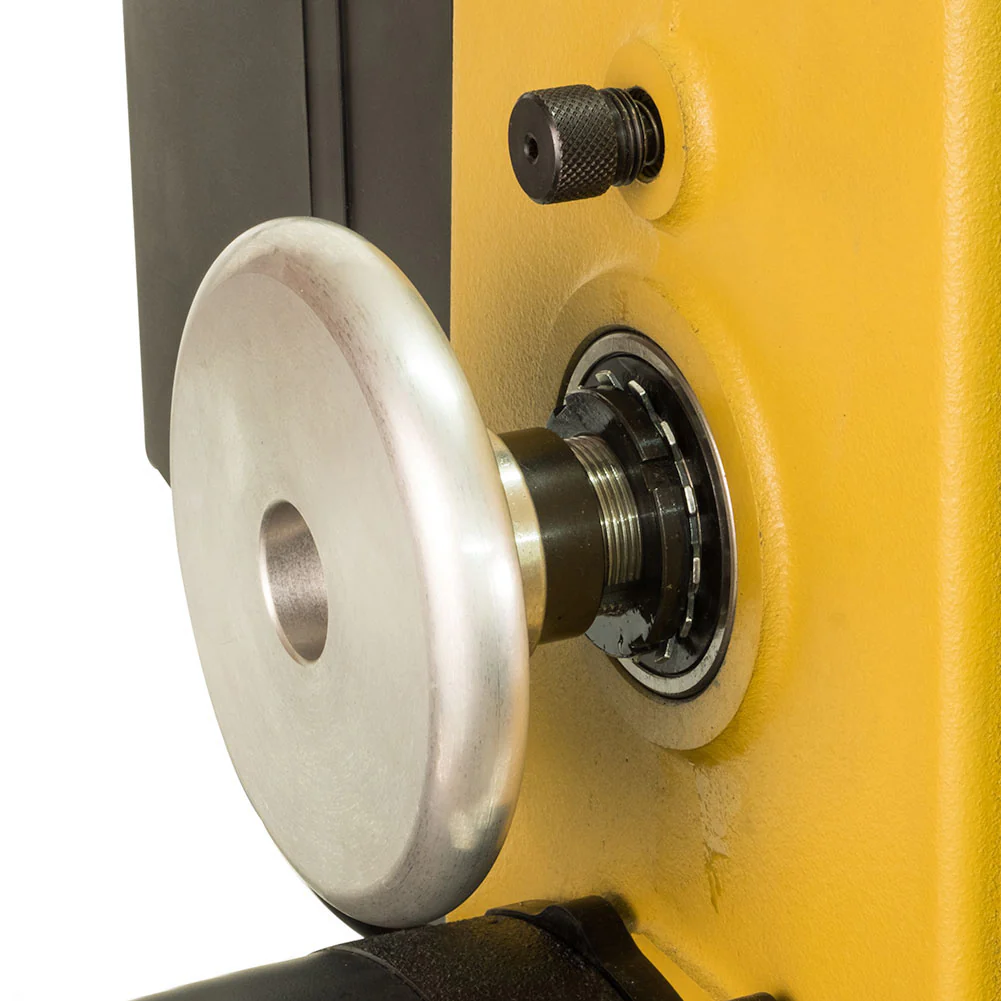

• Redesigned spindle lock

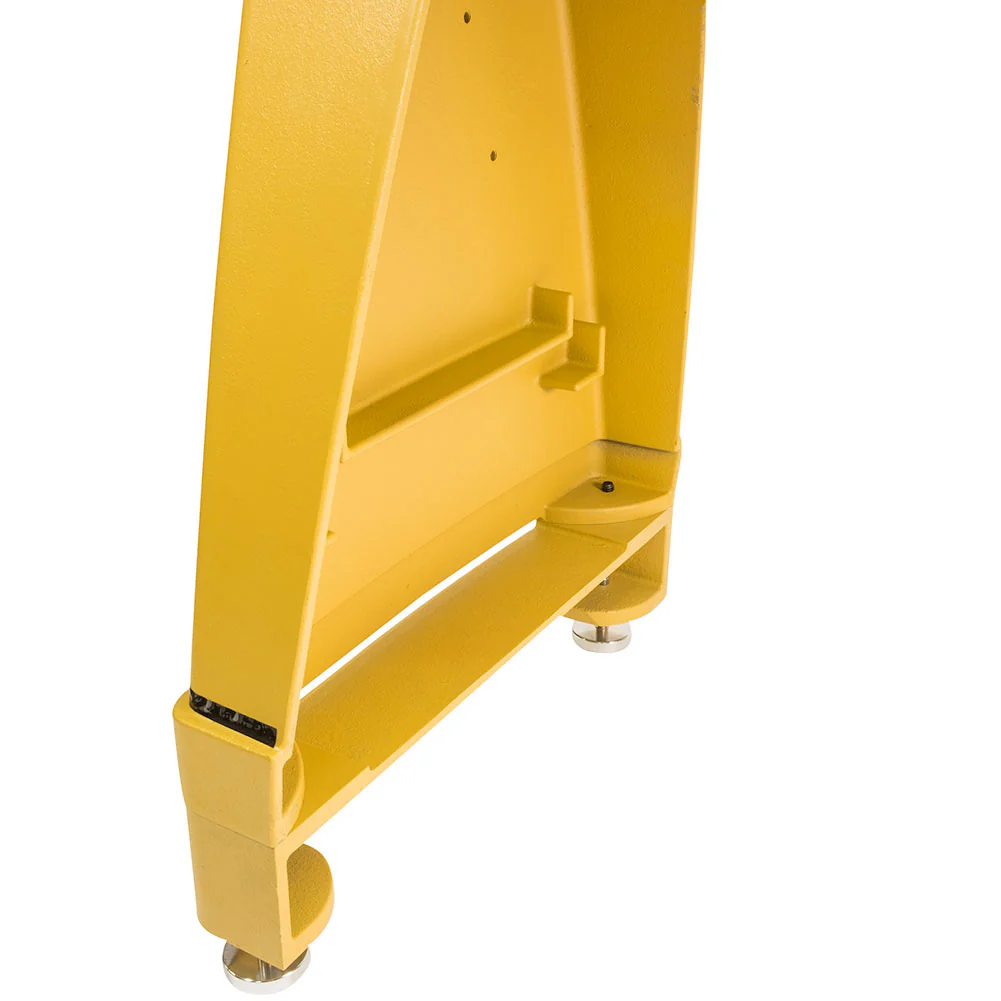

• Includes 4" riser blocks for height adjustment

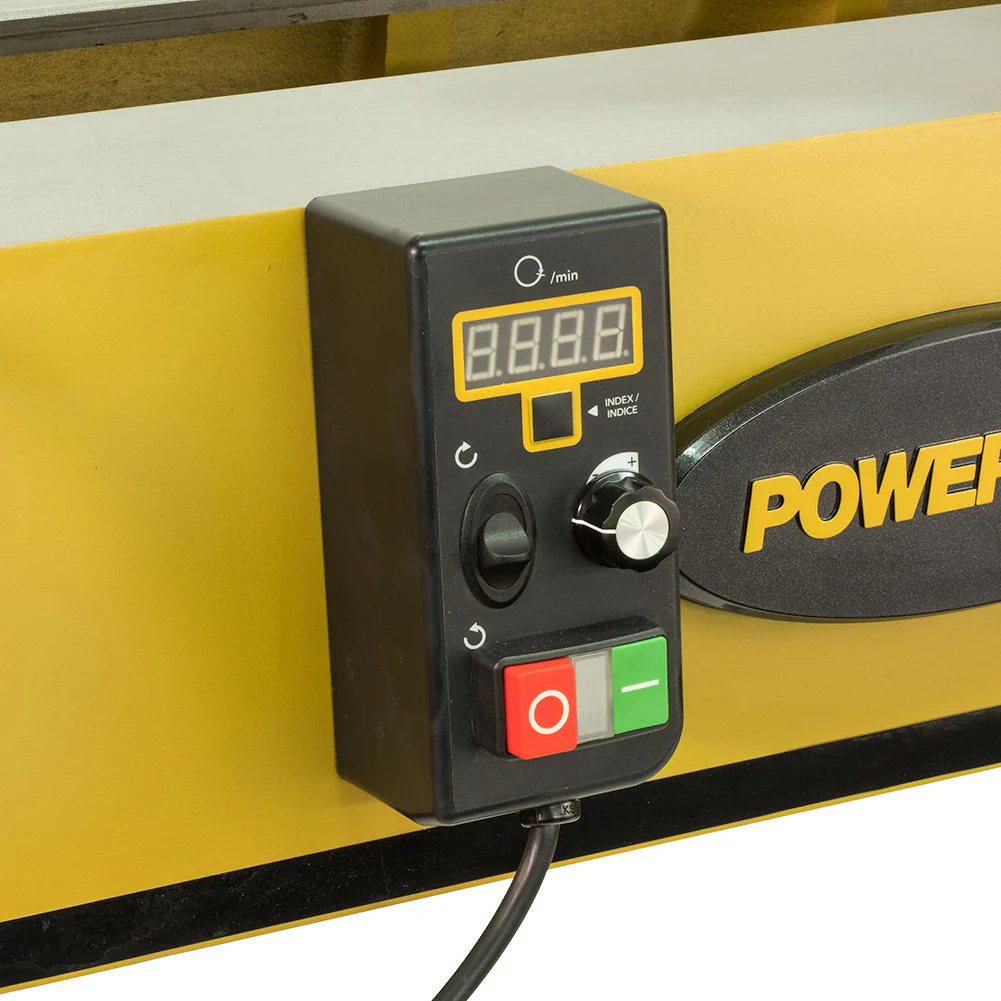

• Digital spindle indexing readout

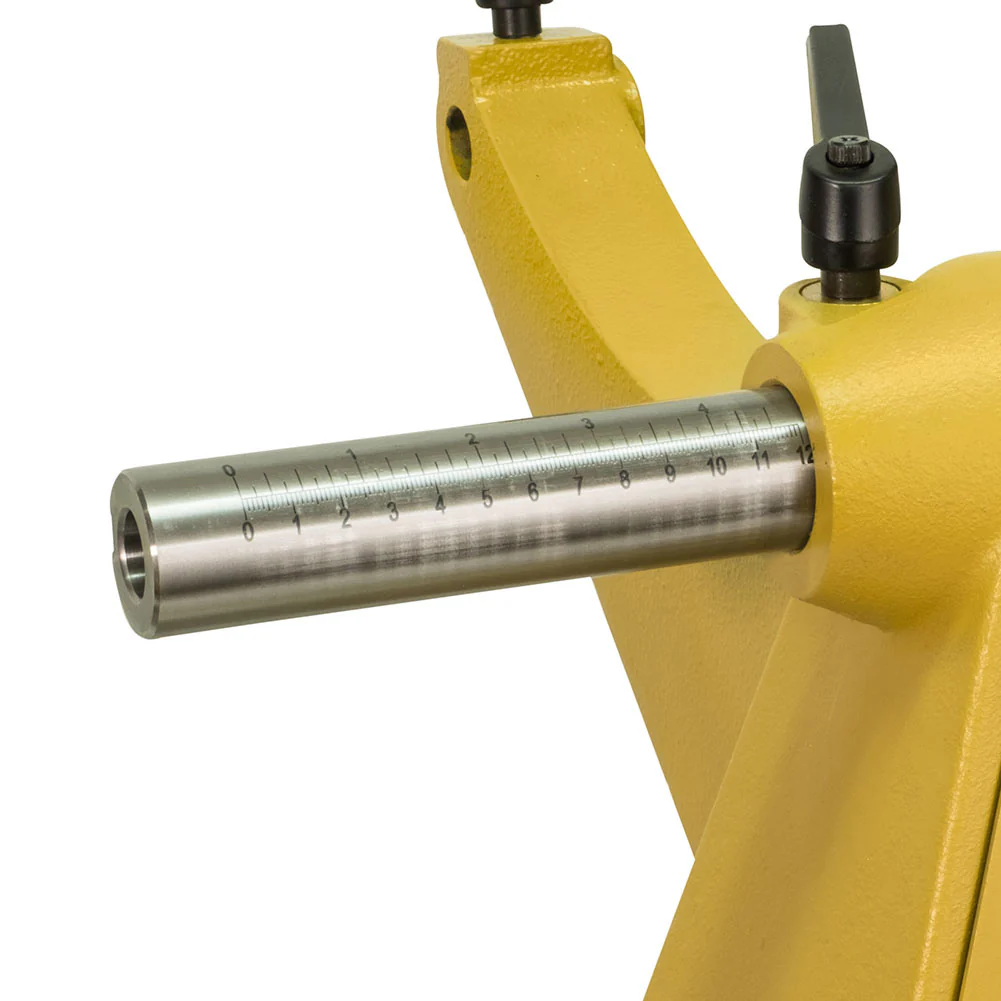

• ACME thread tailstock quill
• Increased weight for stability

Capacities

• Swing over bed: 20"
• Swing over tool rest: 15-3/4"
• Distance between centers: 35-1/2" (working distance with centers installed)
• Maximum outboard capacity: 38" (with optional bed extension in low position)

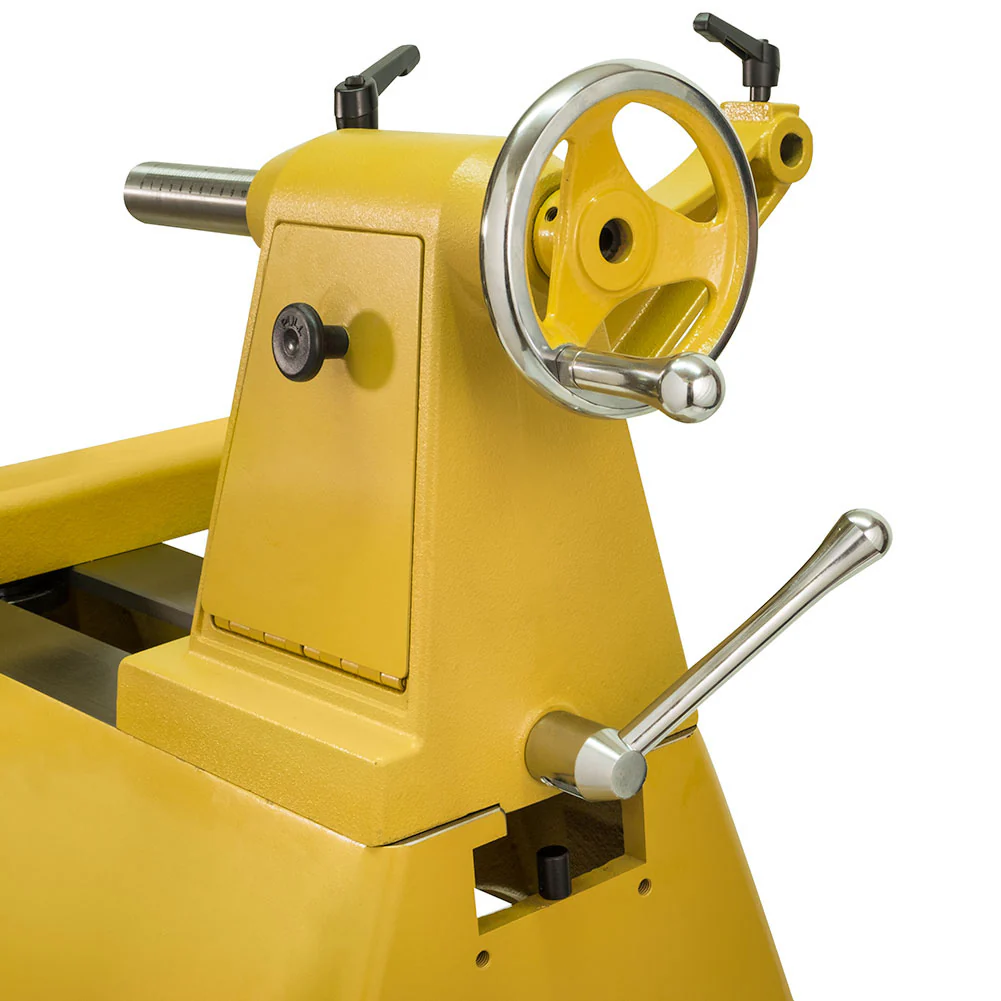

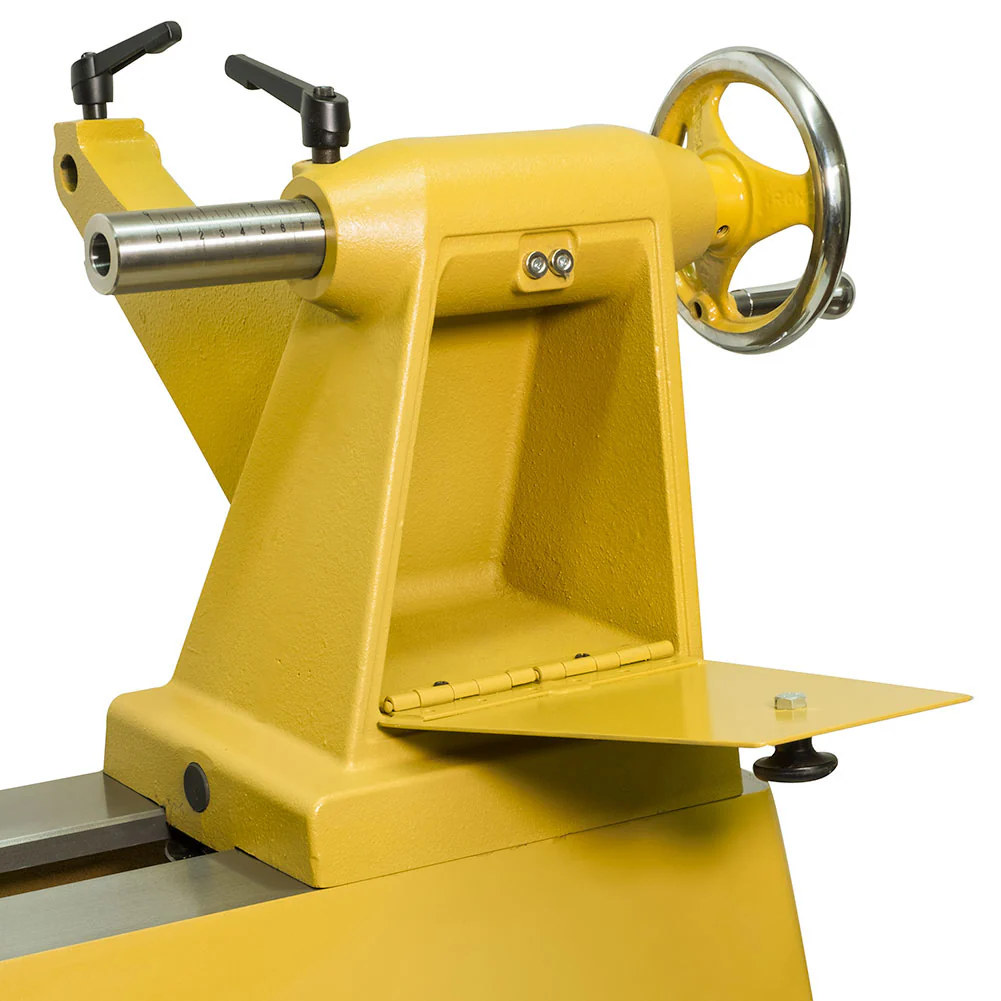

Headstock and Tailstock

• Spindle thread: 1-1/4" x 8 TPI
• Spindle taper: No. 2MT
• Spindle through bore diameter: 5/8"
• Spindle speeds: low range 15-1200 RPM; high range 40-3200 RPM
• Tailstock quill taper: No. 2MT
• Tailstock through bore diameter: 3/8"
• Tailstock quill travel: 4-1/2"

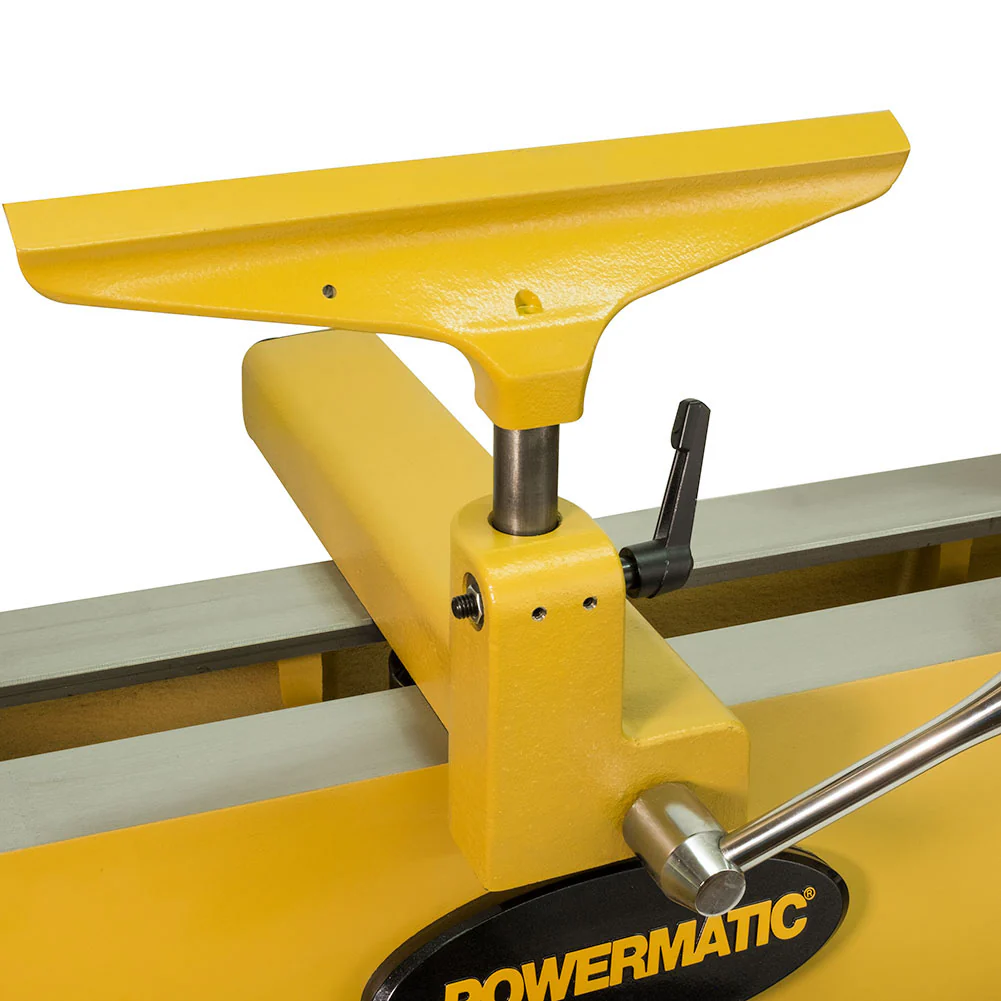

Tool Rest

• Tool rest width: 14"
• Tool rest post diameter: 1"
• Tool rest locking mechanism: Bushing

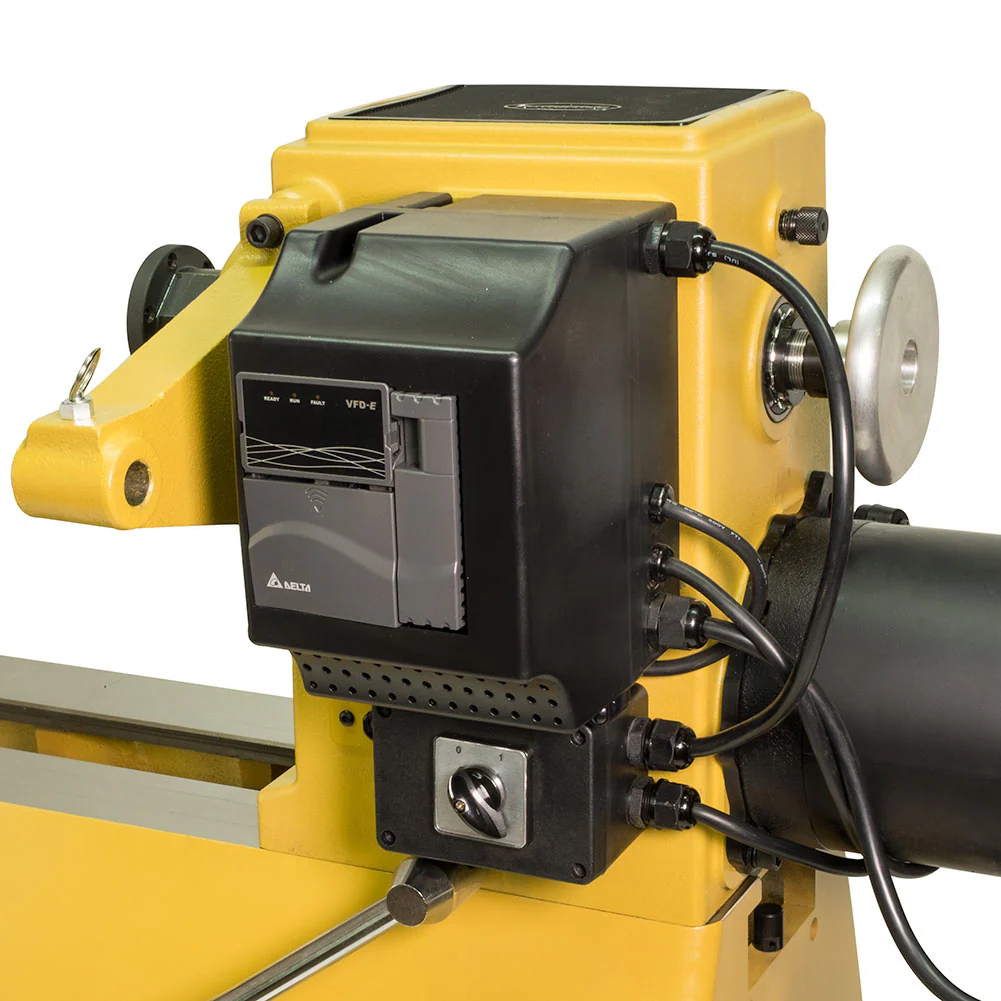

Motor and Electrics

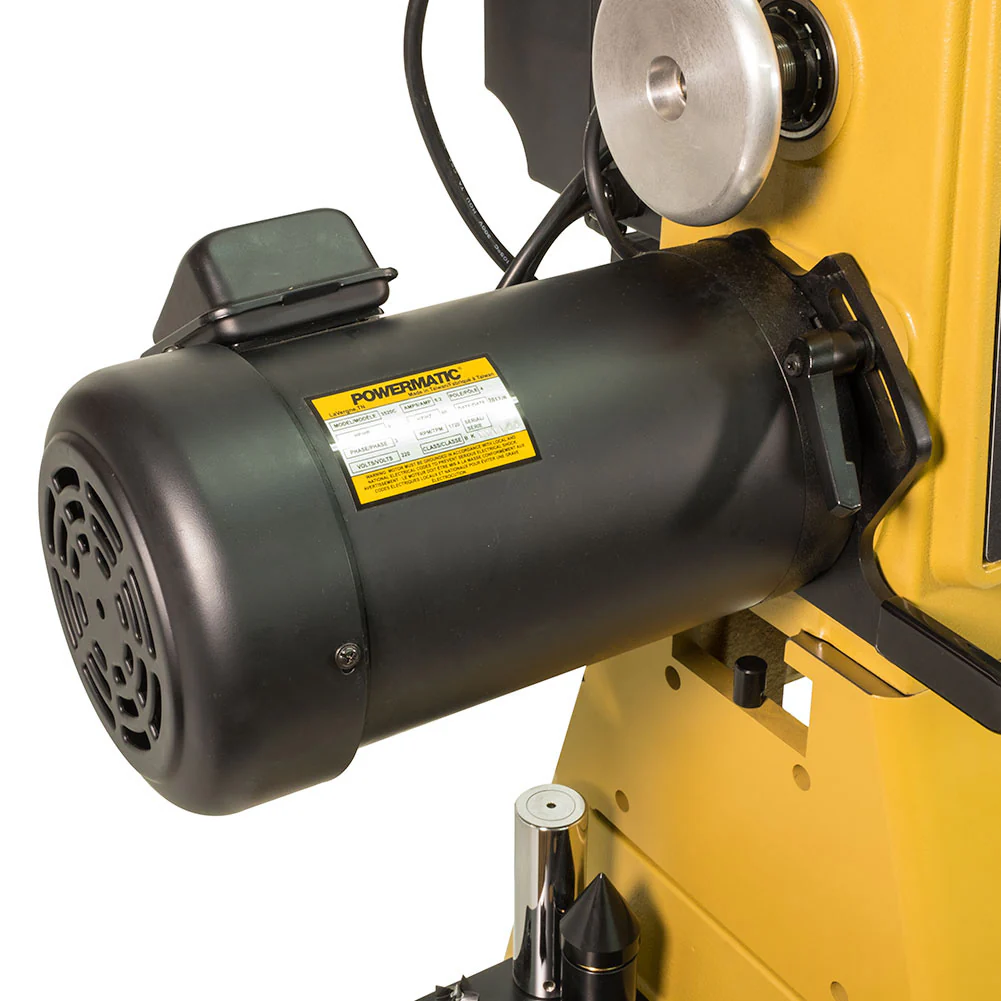

• Motor power: 2HP
• Power requirements: 220V, 1 phase
• Recommended circuit size: 20 Amps
• Drive system: Poly V belt, 2-step pulley

Measurements

• Assembled size (LxWxH): 64" x 24" x 46" (without 4" riser blocks)
• Bed length: 51"
• Spindle height from floor: 40-5/8" (without 4" riser blocks)
• Bed gap: 2-1/2"
• Net weight: 726 lb.
• Shipping weight: 770 lb.

Powermatic part # 1353001
